Google Map — Akira C

Gooogle map Thumbnail 2.png

PROJECT DURATION

4 weeks

ROLE

UX&UI Designer, Researcher and Interaction Designer

TEAM

Chira Chirakijja (Me)

Paddy Donnelly (Support & Mentor)

STAKEHOLDER

Google Inc. (Only for a case study - Fictional Client)

Full Case-Study

► Play Prototype

Design Previews —

Google Map - Choose Payment.png

Google Map - Destination search result.png

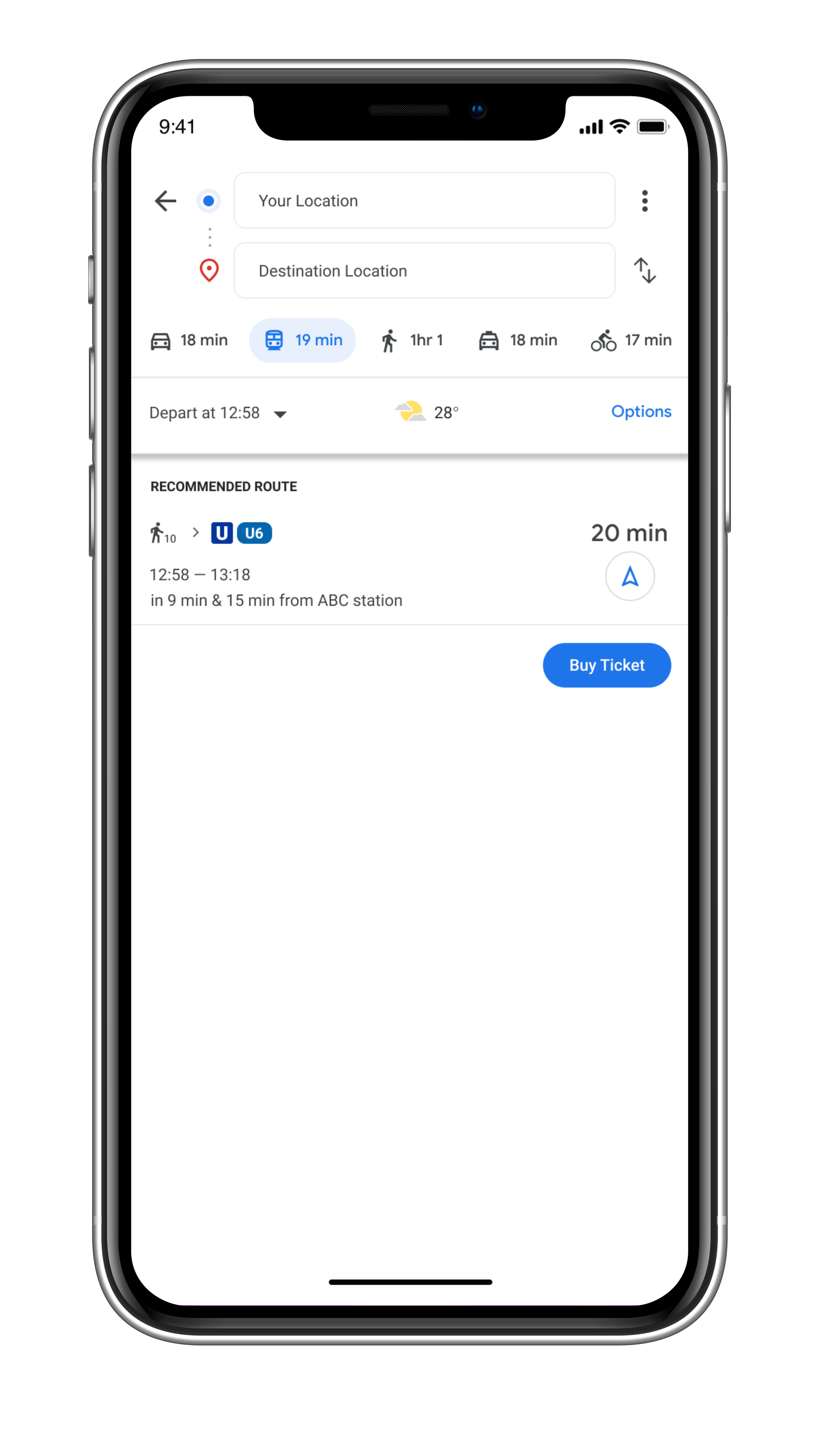

Google Map - Direction Options.png

Google Map - My ticket wallet.png

Google Map - Route Navigation.png

Google Map - Save Menu.png

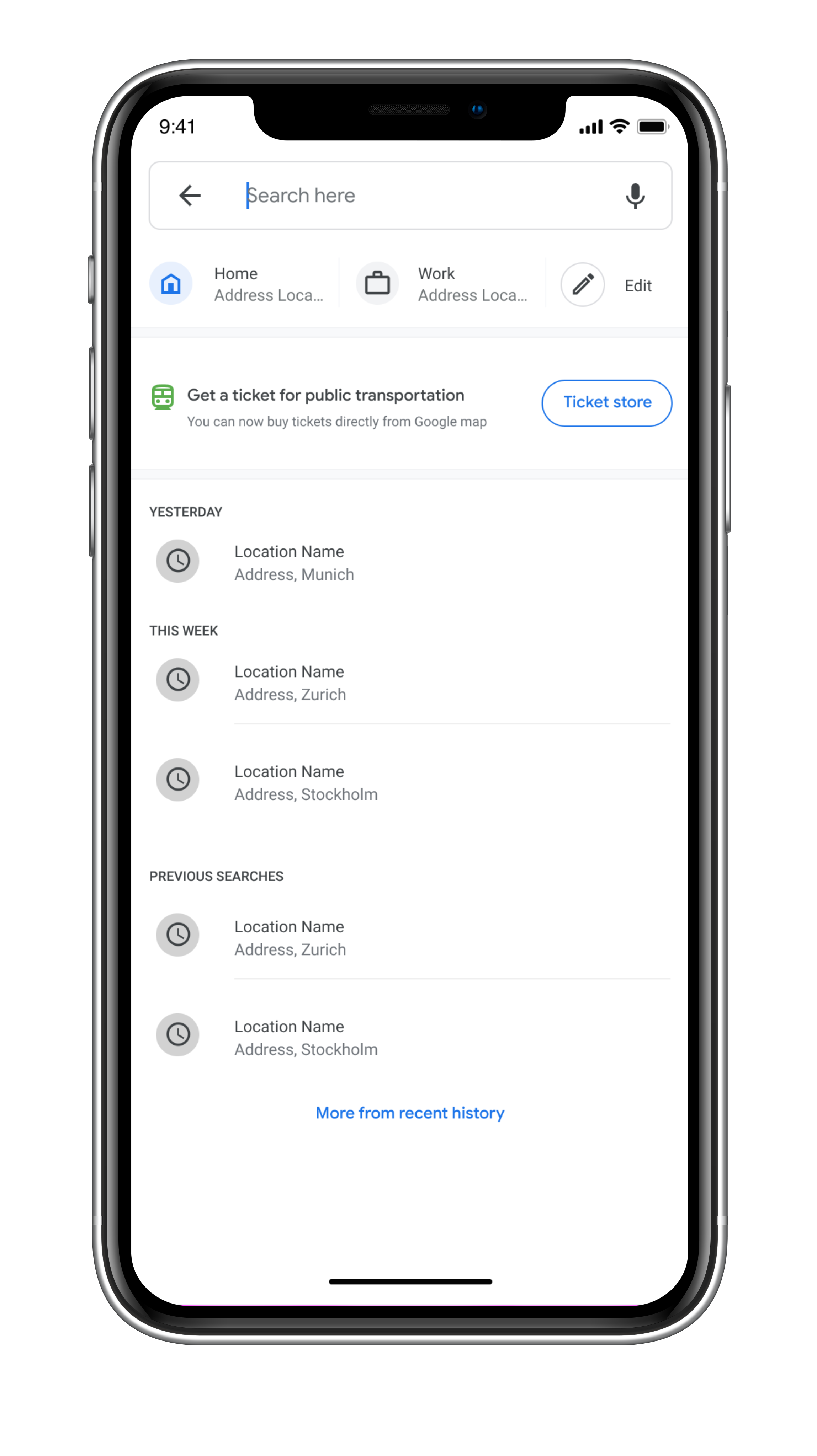

Google Map - Search Function.png

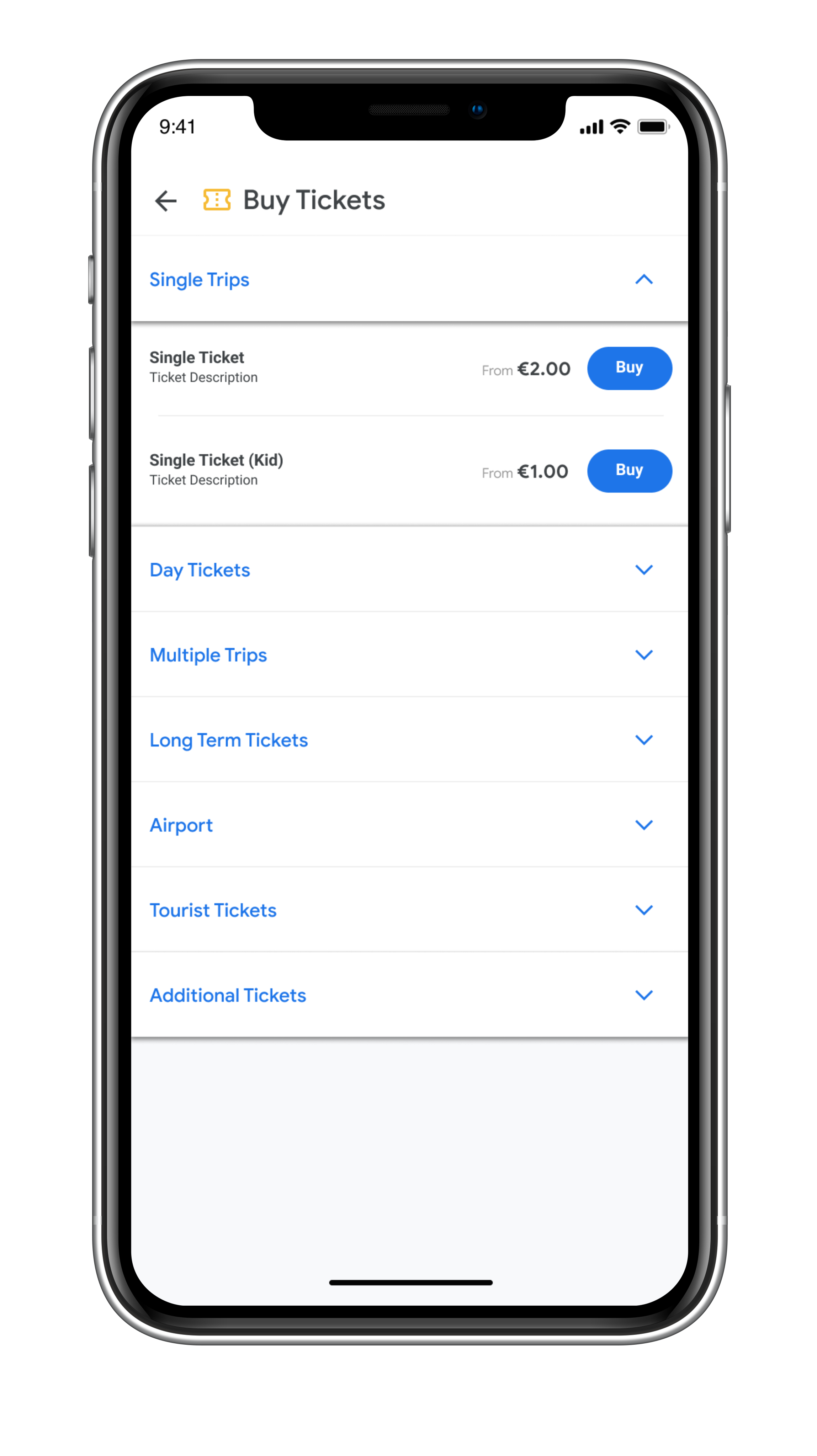

Google Map - Ticket Categories.png

Google Map - Ticket Purchase Setting.png

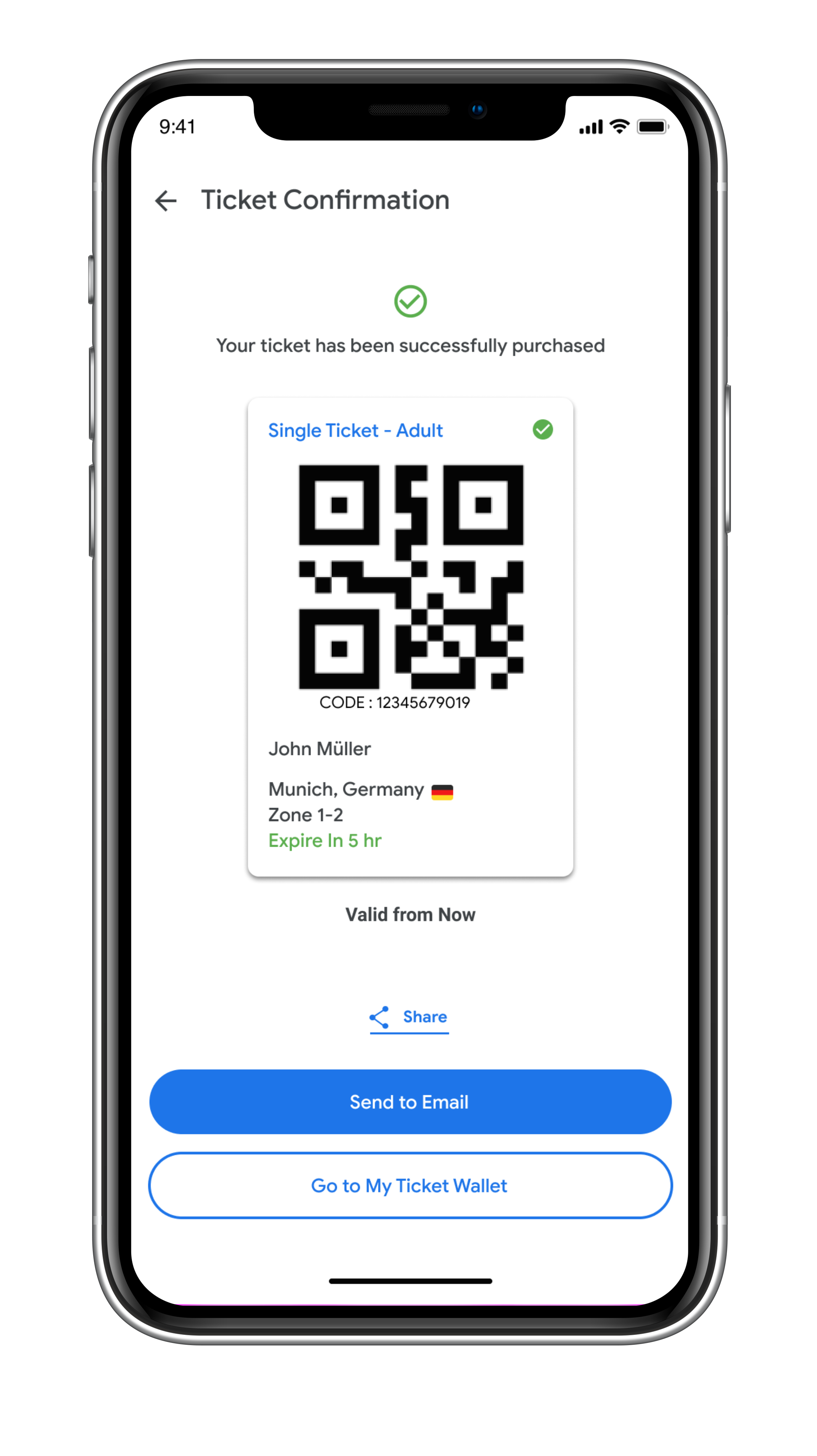

Google Map -Ticket Confirmation.png

Design Process —

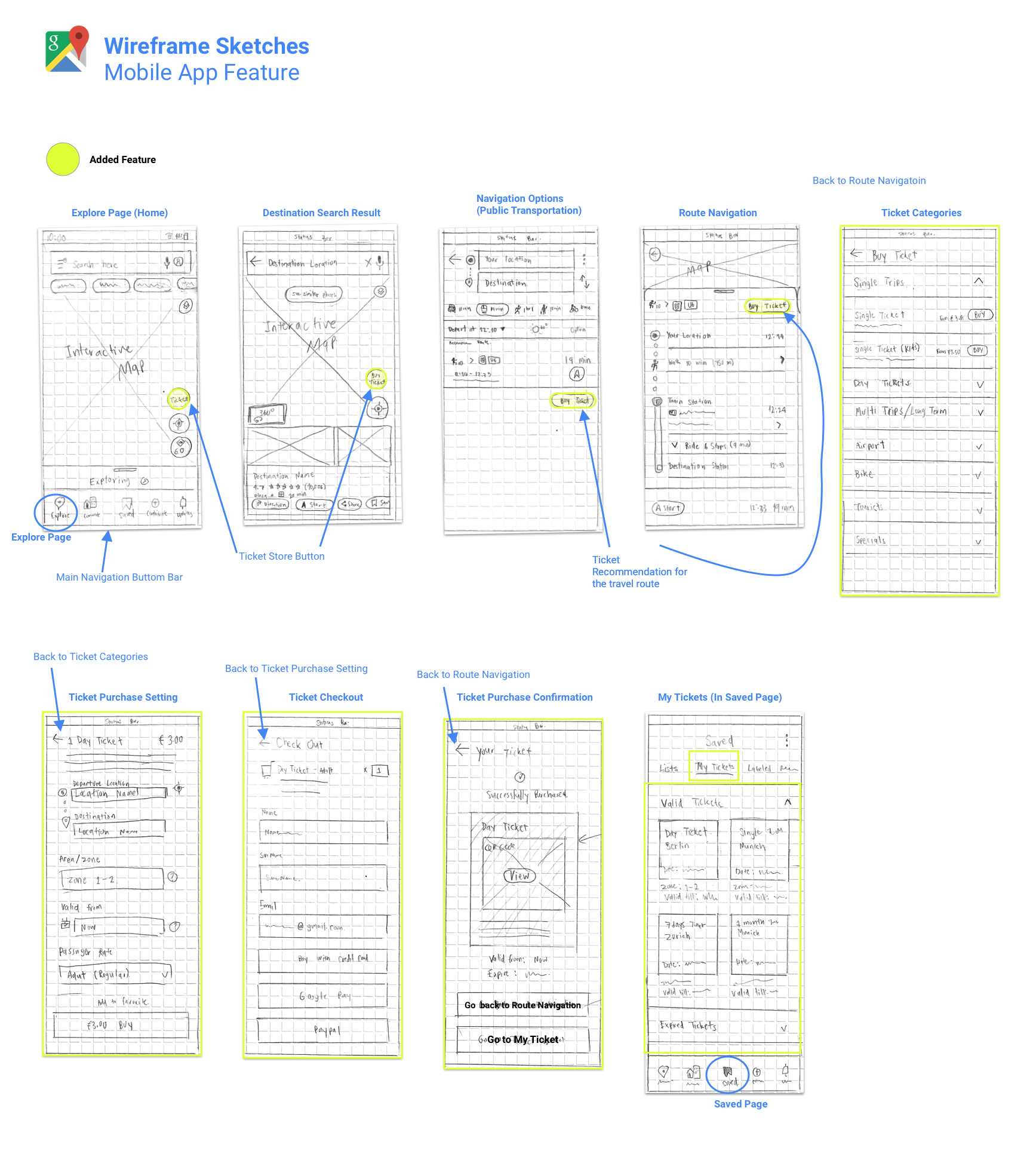

Google Map - Wireframe sketches.png

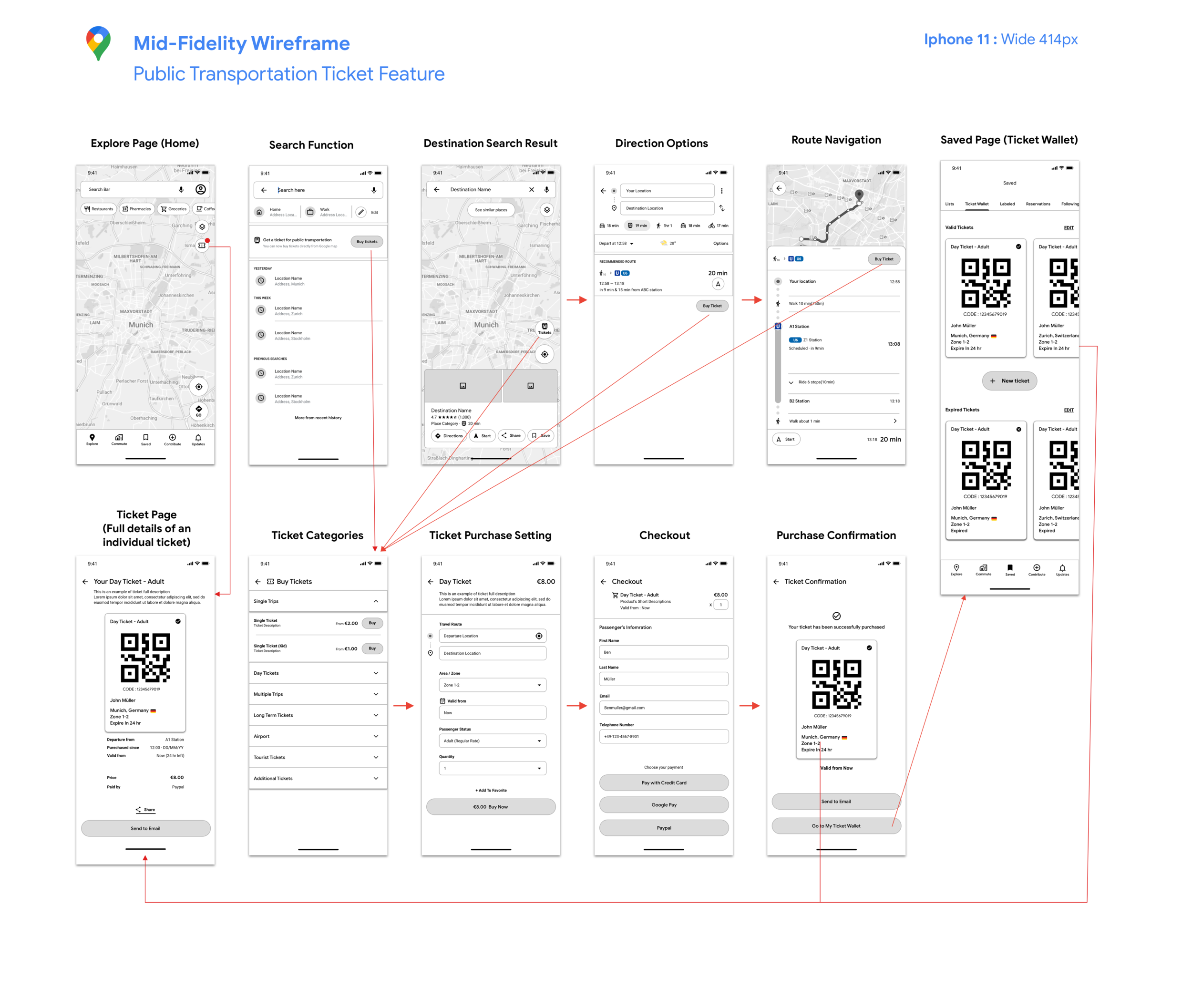

Google Map - MIDFI Wireframes-thumbnail.png

Site Map —

Google Map Ticket - Sitemap@2x (1).png

User Flow —

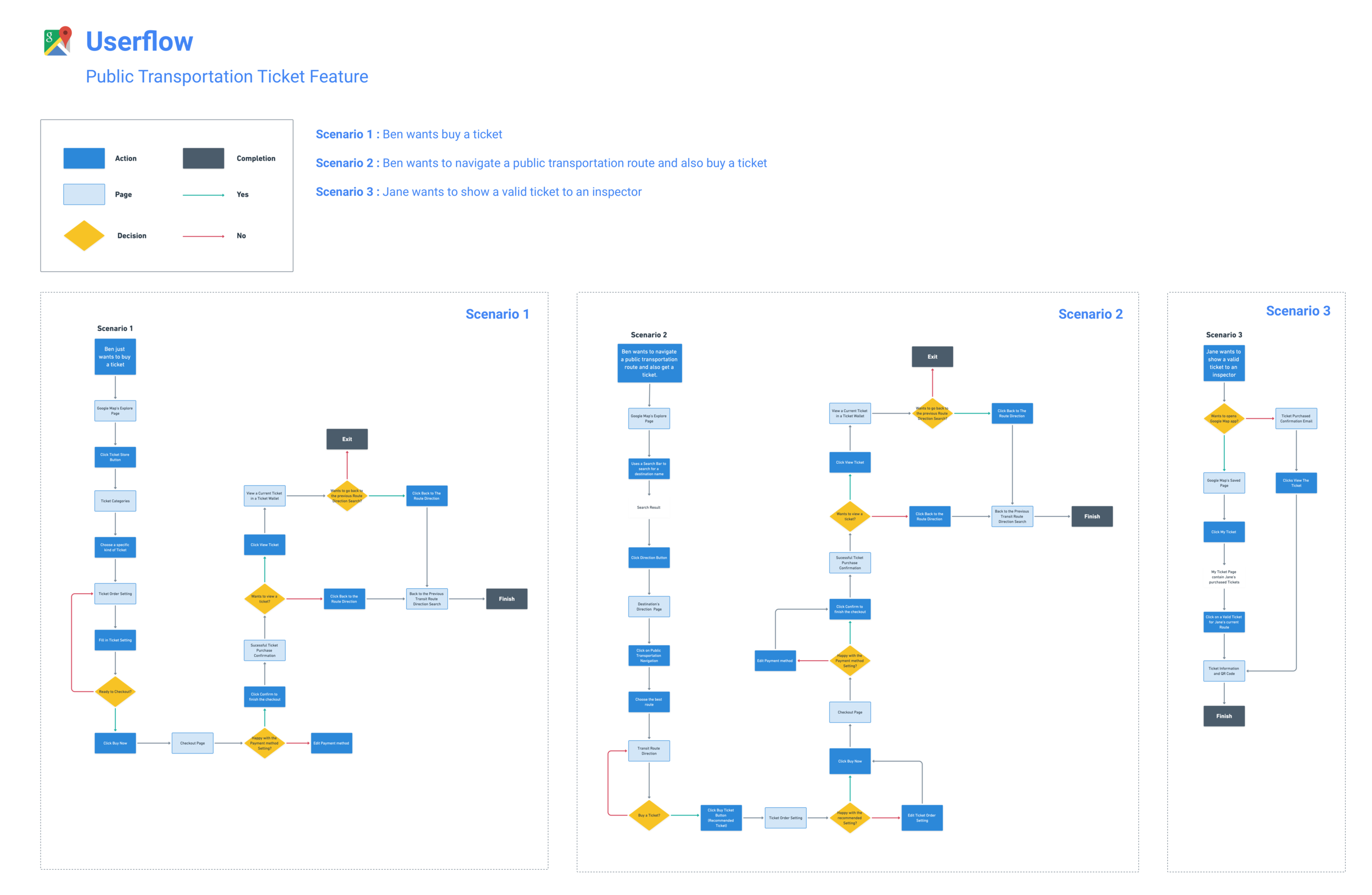

Google Map - Userflow(x1).png

UI —

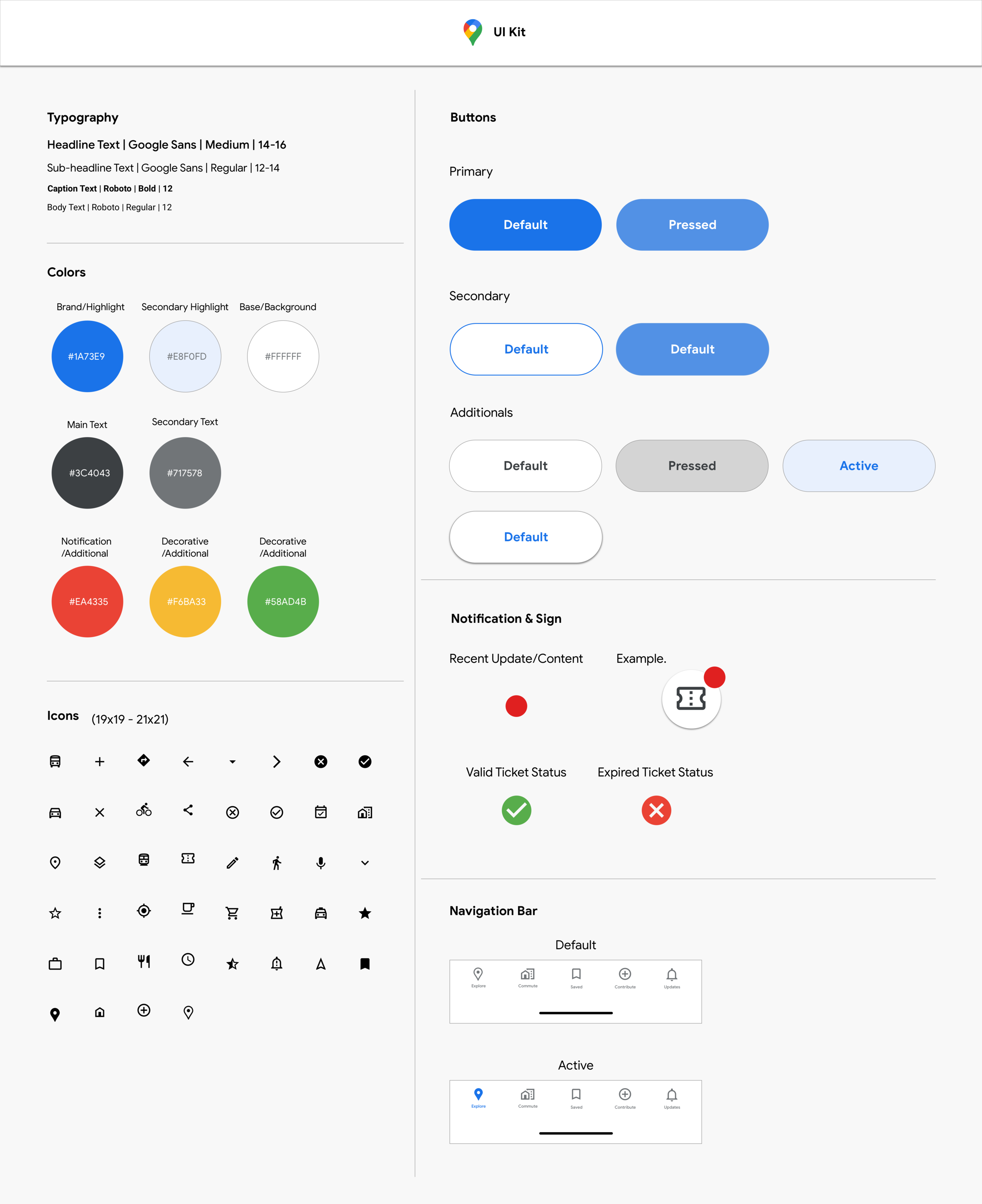

Google Map -UI Kit.png

Research —

Google Map-Persona 1 (Ben).png

Google Map-Persona 2 (Jane).png

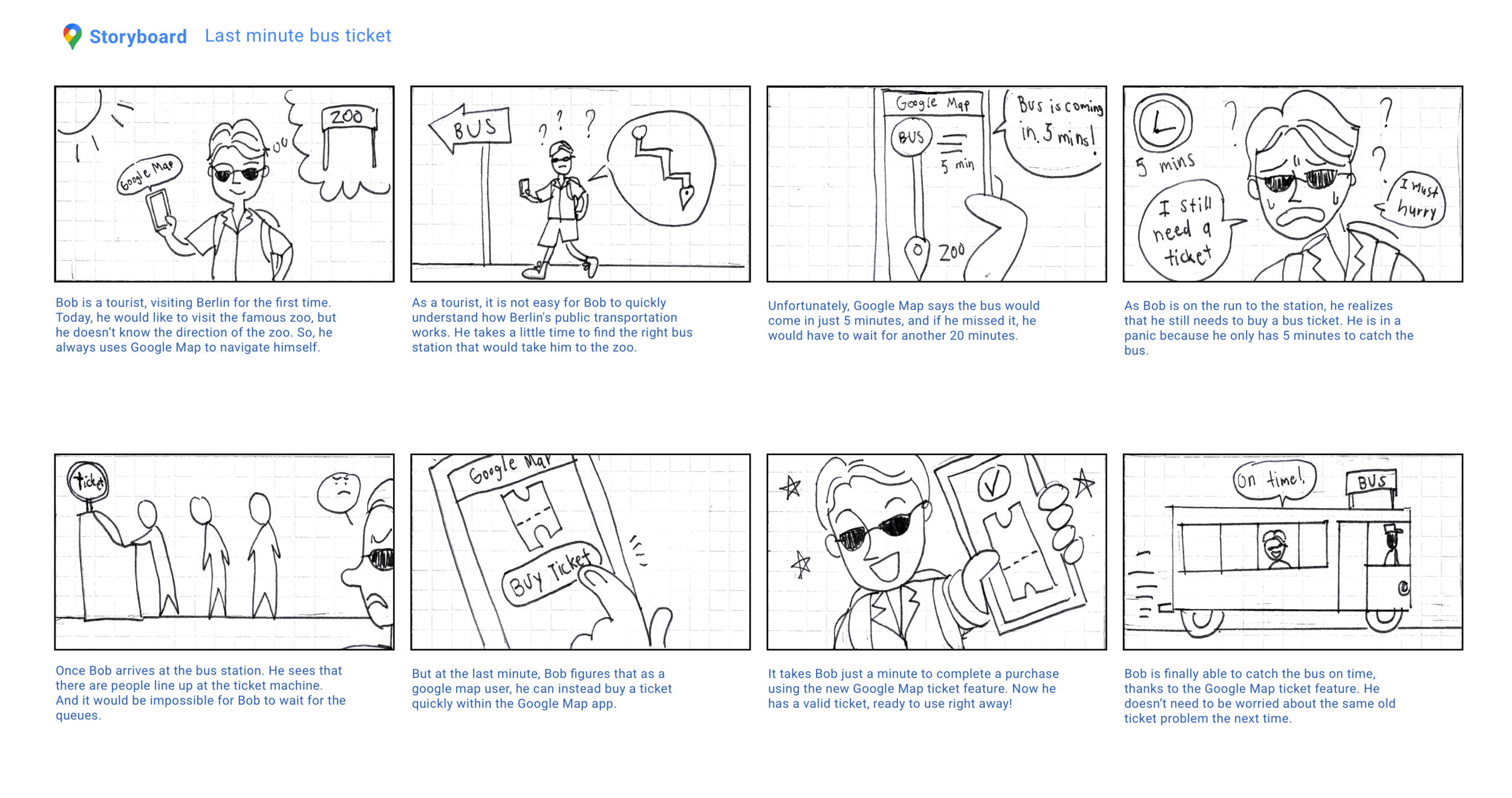

Google Map - Story Board.png

Testing —

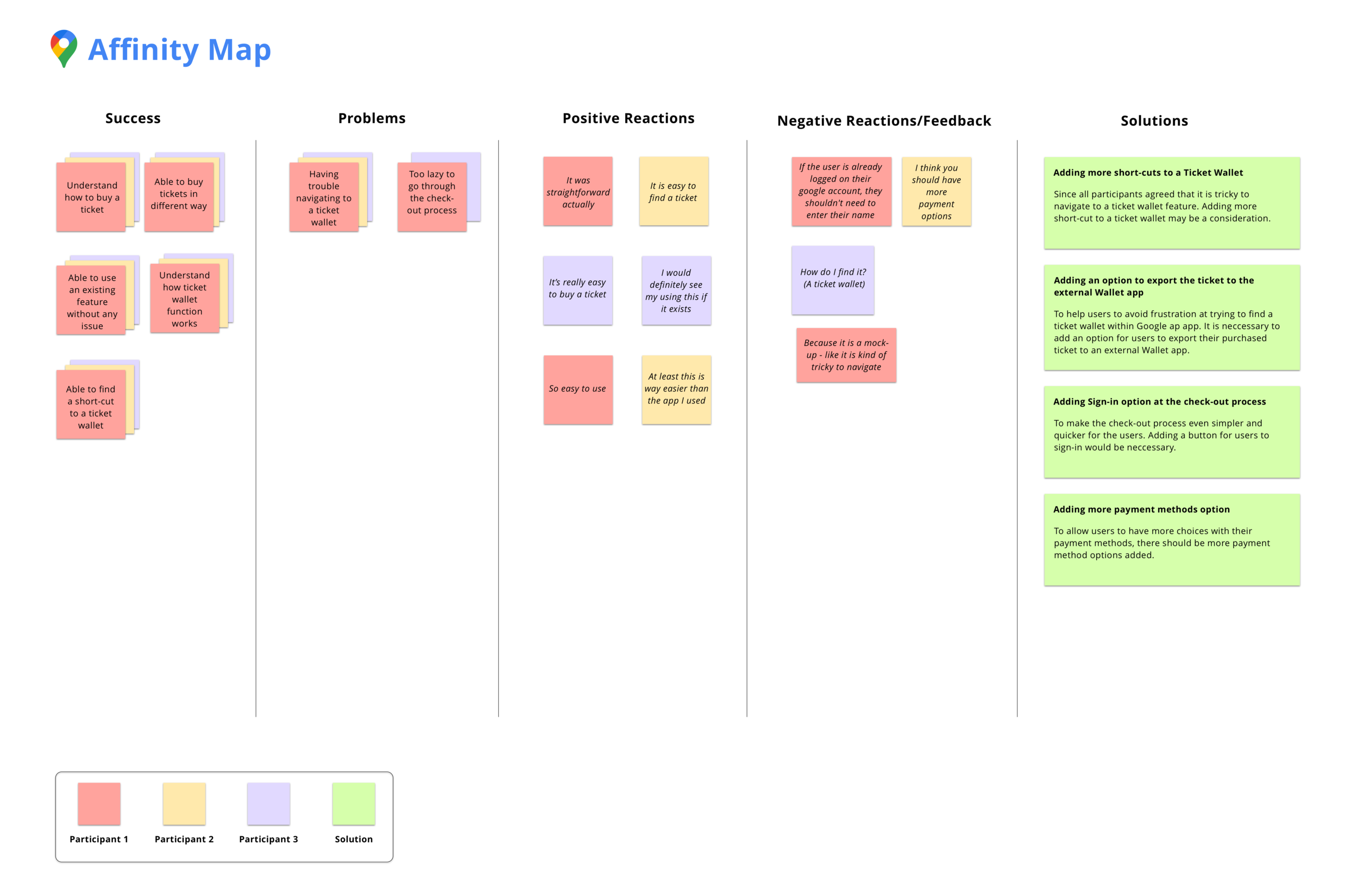

Google Map Affinity Map.png
